Plastic stick machine supplier
Date: 8/16/2019 2:11:00 PM Click: 1545
China Forbona Group Litimed is a company who mainly manufacture cotton swab machines,company has been specially committed to develop and manufacture automatic machine since it is established. We always adhere to the implement of the "integrity, innovation, communication" for business purposes, also regard "technical services" as the spirit of the Founding of the community, and form a complete set of design, manufacture, installation, commissioning, training, maintenance of one-stop service system.
Our company has a vibrant comprehensive technical team, has three senior engineers with strong technical strength to provide you the most professional technical support and services.
Phone: 0577-65513216
Mobile: 18067766882
Email: sales@forbona.com
product description

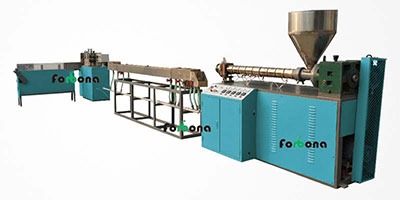

Introduction of the machines
The machine composed of plastic extruder, cooling unit, hual-off device .etc .It can produce different specifications of stick or pipe such as single color, double color, three color, The product supplied by the machine used in a wide range in industrial filed. For example： Drinking straw in food industry, straws in medical area .etc
Machine function
| Quotation | USD11000 | |||
| Main parts | Main parts are: extruder, cooling water tank, hauling cutting system, stick gather equipment single color, bicolor or tricolor pipes can be realized.(air compressor, chiller ,automatic hopper as optional ) | |||
| Power supply | Main screw | 380v ,3phase,50hz,7.5kw(VFD) | ||
| Sub-screw | / | 0.75kw | 0.75×2kw | |
| Hauling motor | 0.75kw(VFD)x1 | |||
| Cutting motor | 0.75kw(VFD)x1 | |||
| Temperature Controller | 5sets | |||
| Automatic Counting Device | 1set | |||
| Way of Hauling | By rubber roller | |||
| Way of cutting | Rotatory cutting | |||
| Cooling water tank | Usually 3.4m, can be adjusted. | |||
| Option | Air compressor (1.5 kw) | |||
| Chiller( 5HP) | Automatic Hopper with dry | |||
| Specification of Pipe | Material | PP PE etc. | ||
| Diameter | 2mm~3mm | |||
| Length | Customizable | |||
| Speed | 1500-2300pc/mins | |||
| Color | Single | |||
| Machine dimension L×W×H | 8m×1m×1.7mm | |||
| Weight of equipment | 1.5T |

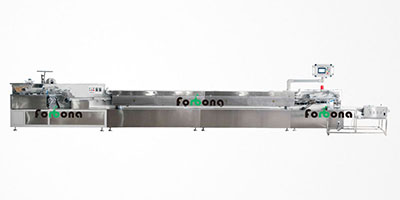

FBN-1200MS Medical Cotton Swab Machine
Description
- The machine provides integration solutions with production, drying, packaging in one step , cotton swabs made by this machine is compliance with country medical rule second grade,is yours best choice to make medical and daily use cotton swabs. All the aircraft door using high-grade stainless steel, beautiful, hygienic and easy to clean. Mould is made of stainless steel replace brass, more durable, more beautiful shape of a cotton swab. Oven internal structure is our original design, the cotton humidity control at zero humidity, perfect to solve the problem of mildew of bamboo stick , wood sticks by humidity
- Packaging part can reduce the quantity of labor, only two workers to complete the bagging and packaging sectors, saving production costs.
- Control system uses advanced Japanese technology and use beautiful and practical rocker touch panel, easy operation.
Machine parameters:
| Model | FBN-1200MS |
| Capacity | 1000-1200 pcs/min |
| Main Parts | France Schneider PLC |
| France Schneider Touch-screen | |
| France Schneider inverter | |
| France Schneider relays | |
| France Schneider switch | |
| Japan SMC air cylinder | |
| Japan SMC Magnetic valve | |
| Japan Omron Sensors | |
| Power supply | 380V. 3phase. 50hz （220V. 3phase. 60hz customizable） |
| Drying type | closed type drying oven, economical and effective |
| power consumptional | 6kw/hour |
| Suitable Cotton sliver | 4 g/m |
| Suitable Stick size | Length:80mm,100mm,120mm |
| diameter：2.3—2.5mm | |
| weight:1.6—2.5g | |
| Shape of cotton buds | Single head, Double head |
| Suitable stick | Bamboo stick,paper stick,wooden stick |
| manner of packing | Film bag |
| Machine Size(L*W*H) | 9.6*1*1.6 m |
| Machine Weight | 1890kg |
